3003 5052 Alloy Aluminum Honeycomb Core For Composite Panel

3003 5052 Alloy Aluminum Honeycomb Core For Composite Panel

Product Description

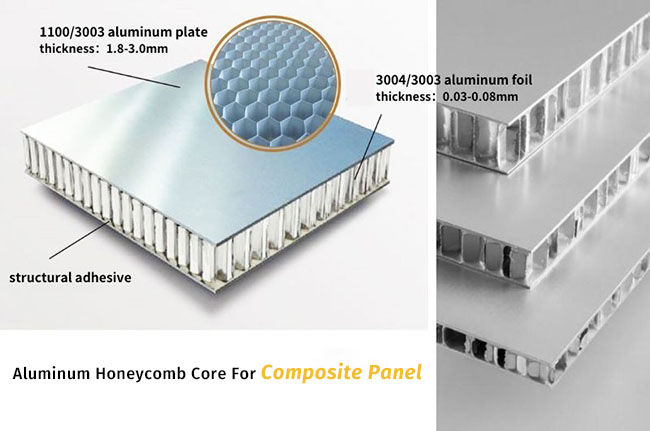

The upper and lower bottom plates and panels of the aluminum honeycomb panel are aluminum alloy plates, with a thick and light honeycomb core in the middle. The panels and the sandwich core are bonded to form an integral rigid structure through adhesives. The panel surface treatment can be fluorocarbon, roller coating, thermal transfer, wire drawing, or oxidation; the aluminum honeycomb panel can also be bonded with fireproof panels, stones, and ceramics.

The upper and lower bottom plates and panels of the aluminum honeycomb panel are mainly made of high-quality 3003-H24 or 5052-H14 alloy aluminum plates, and the thickness of the aluminum plate is between 0.4 mm and 3.0 mm.

The aluminum honeycomb core material is a hexagonal honeycomb core made of 3003 aluminum foil, with a thickness of 0.02~0.06mm. The aluminum honeycomb side length models are 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, etc.

Since the base plate and panel of the honeycomb sandwich structure are very thin and light, the core is a porous material with low density, and the aluminum alloy itself is a light metal; therefore, the weight reduction effect of the sandwich structure material composed of honeycomb aluminum core and aluminum panel is particularly obvious; aluminum honeycomb panels have been widely used in building exterior wall decoration, furniture, carriages, etc. due to their many advantages such as light weight, high strength, and high rigidity.

Product Specification

ITEM	DETAILS
Aluminum Alloy	3003 5052, etc
Aluminum Foil Thickness	0.01-0.2 mm, etc
Aluminum Honeycomb Core Cell Size (Cell Size = Cell Side Length x 1.732) (mm)	0.5 - 15 mm, or according to customers’ requirements
SUPPLIED FORM EXPANDED OR UNEXPANDED FULL BLOCKS OR CUT SLICES PERFORATED OR IMPERFORATED

Mechanical Properties
Alloy Honeycomb	Compression	Plate Shear
Designation	Bare	L Direction		W Direction
Material Cell Size	Strength psi	Strength psi	Modulus ksi	Strength psi	Modulus ksi
mm --- inch	Typ.	Typ.	Typ.	Typ.	Typ.
6.4---1/4	625	365	70	215	38
9.5---3/8	340	230	45	130	22
12.7--1/2	190	140	28	80	14
17-----3/4	120	100	20	65	11
25.4----1	80	65	14	45	7
9.5-----3/8	362	250	55	160	26
Sizes are available on request; above values are not guaranteed and should be used as indication only.
